High Pressure Stainless Anti-Drip Nozzles 12/24
$8.66
Product Description

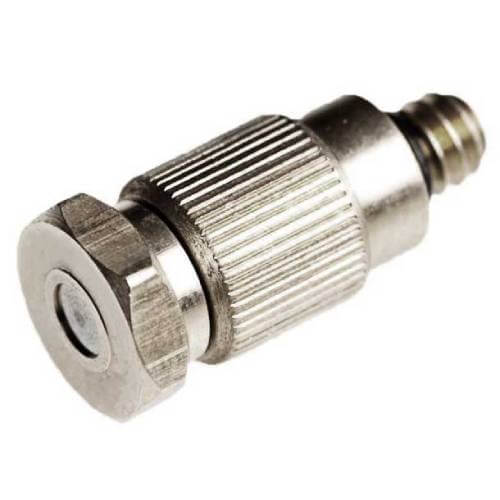

Fine, low flow atomizing stainless steel nozzles with a stainless-steel insert that can be hand tightened and seal with an O-Ring.
This nozzle is designed with a ball and spring to stop the flow of mist once the pump is shut off. Nozzle can be disassembled for easy cleaning.
Hex style with 12/24 nozzle thread.
Nozzle is for high pressure only, 1000 psi. Not suited for pressure below 500 psi.
Additional Information
| Choose Model | Anti Drip S.S. Hex Series Nozzle .008 x 12/24, Anti Drip S.S. Hex Series Nozzle .012 x 12/24, Anti Drip S.S. Hex Series Nozzle .016 x 12/24, Anti Drip S.S. Hex Series Nozzle .020 x 12/24 |
|---|
Flow Rate Table
| Orifice Size | Gallons Per Minute |
|---|---|
| .008 Orifice | .020 GPM |
| .012 Orifice | .028 GPM |
| .016 Orifice | .040 GPM |
| .020 Orifice | .050 GPM |
